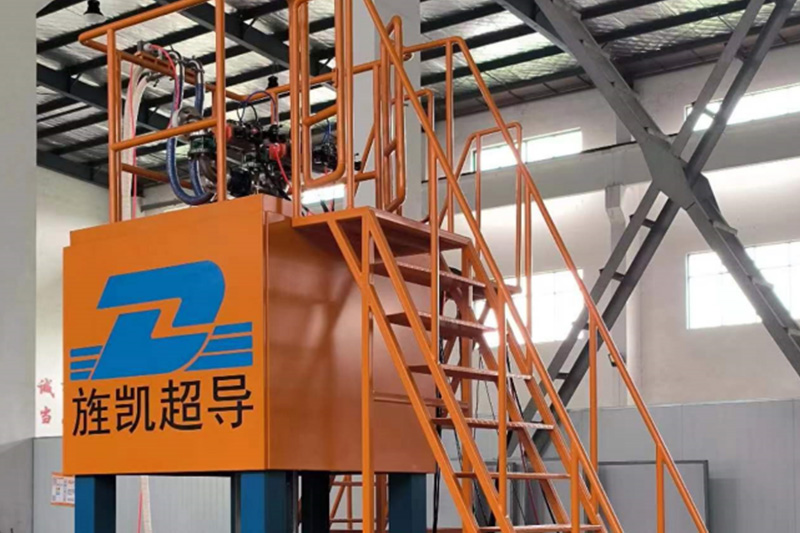

JNLC-5-210S1 stand-up superconducting slurry magnetic selection machine production site
A new material company in Suzhou, Jiangsu Suzhou, a new material and raw materials for new materials (2 units)
Production cost data of vertical superconducting magnetic selection machine (Source: Customer actual production)
Determination of magnetic efficiency and energy consumption | Superconduct JNLC-5/210S1 | Remark |
Daily processing volume (m3) | 40 | |
Inspirational power (KW/H) | 19 | |
Magnetic caliber (MM) | 210 | |
Slurry concentration | 10-60% | Good liquidity |
Streaming speed (mm/s) | 14 | |
Need to divide the number of magnetic traversal | 1 | |
Treatment time (h) | 22.9 | |
Cleanliness detection | 100-200μm ≤5, 0 above 200 μm | |
Energy consumption (kw) | 435 | Inspiring power × processing time |
Except magnetoelectric fee (RMB/day) | 348 | Energy consumption × 0.8 (electricity coefficient) |
Need the number (Taiwan) | 1 |
